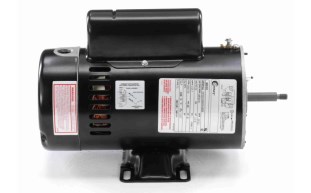

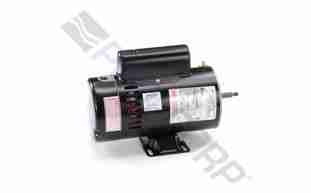

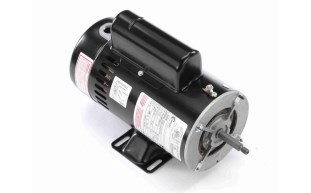

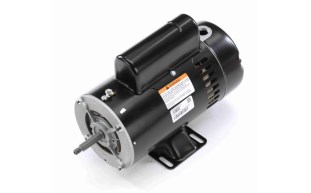

Century® SDS1302 Direct Spa ODP Thru-Bolt Motor; 3/0.38 HP, 3450/1725 RPM, 230 V, 56Z, Threaded Shaft, 2-Speed
Description
This versatile and reliable Direct Spa ODP Thru-Bolt Motor 3.0/0.38HP 230V is replacement part that can be relied upon when it matters the most. Made from high-quality parts and materials, this motor provides long-lasting dependable performance.
Branch Availability
content loaded
Specifications
- BrandCentury
- Ambient Temperature50 degrees Celsius
- Shipping Dimensions11 x 9.5 x 16 inch
- Amps High Speed12
- Amps Low Speed3.7
- ApplicationPool, Spa
- Bearing TypeSealed Ball
- ColorBlack
- Duty CycleContinuous
- Each Product Weight34 pound
- Efficiency GroupStandard
- Frequency Rating (Hz)60
- Horsepower3 horse power
- Insulation ClassF
- Length Less Shaft10.92 inch
- Master Carton Quantity1
- Minimum Sell Quantity1
- Motor Enclosure TypeOpen Drip Proof
- Motor Frame Size56Z
- Motor Shaft RotationCounterclockwise Pulley End
- Motor Speed2-Speed
- Motor Thermal ProtectionAutomatic Reset
- Pallet Quantity30
- PhaseSingle
- RPMs Max3450
- RPMs Min1725
- Service Factor1
- Shaft DesignThreaded
- Shaft Diameter0.5 inch
- Shaft Length2.375 inch
- Shaft MaterialCarbon
- Standards ApprovalsCSA Certified
- Voltage230V
- Commercial, Residential, or ProfessionalResidential
- Diameter6.5 inch
- Flange MaterialAluminum
- Frame MaterialRolled Steel
- Green or Energy Efficient ProductTrue
- Motor Capacitor TypeStart
- Shaft Height3.5 inch
- Thrust HP3
- UPC Code786674030887
