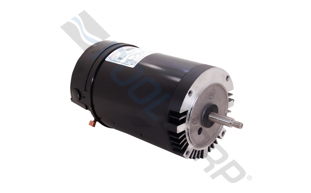

Century® USN1252 Replacement Pool and Spa Pump Motor; 2.5 HP, 3450 RPM, 208-230 V, 56J, Threaded Shaft
Description
This versatile and reliable ODP Northstar Pool and Spa Pump Motor is replacement part that can be relied upon when it matters the most. Made from high-quality parts and materials, this motor provides long-lasting dependable performance.
Branch Availability
content loaded
Specifications
- BrandCentury
- Ambient Temperature50 degrees Celsius
- Shipping Dimensions19.5 x 9.5 x 9.25 inch
- Amps High Speed13
- Amps Low Speed11.8
- ApplicationPool
- Bearing TypeSealed Ball
- ColorBlack
- Duty CycleContinuous
- Each Product Weight37.55 pound
- Efficiency GroupHigh
- Frequency Rating (Hz)60
- Horsepower2.5 horse power
- Insulation ClassB
- Master Carton Quantity1
- Minimum Sell Quantity1
- Motor Enclosure TypeOpen Drip Proof
- Motor Frame Size56J
- Motor Shaft RotationCounterclockwise Pulley End
- Motor Thermal ProtectionAutomatic Reset
- Pallet Quantity40
- PhaseSingle
- RPMs Max3450
- RPMs Min3450
- Service Factor1.1
- Shaft Design7/16 Threaded
- Shaft Diameter0.625 inch
- Shaft Length2.5625 inch
- Shaft Material303 Stainless Steel
- Voltage208V, 230V
- Commercial, Residential, or ProfessionalResidential
- Diameter6.5 inch
- Flange MaterialAluminum
- Flange TypeRound
- Frame MaterialRolled Steel
- Green or Energy Efficient ProductTrue
- Motor RatingUp-Rated
- UPC Code663001674887
