National Diversified Sales

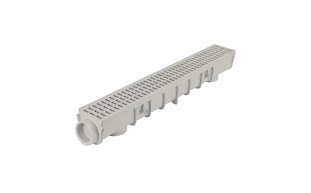

5" x 5.5" x 39-3/8" Light Gray Plastic Pro Series Deep Profile Channel Drain Kit

Product #:NDS-58-1193

Mfg. Part #:864


NDS 864 5" x 5.5" x 39-3/8" Light Gray Plastic Pro Series Deep Profile Channel Drain Kit

National Diversified Sales

5" x 5.5" x 39-3/8" Light Gray Plastic Pro Series Deep Profile Channel Drain Kit

Product #:NDS-58-1193

Mfg. Part #:864

Description

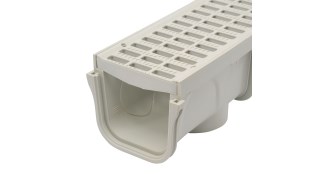

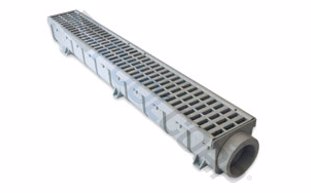

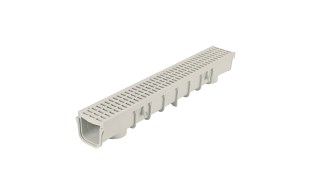

NDS 864 5" x 5.5" x 39-3/8" Light Gray Plastic Pro Series Deep Profile Channel Drain Kit. The most durable modular drain system in its class, it captures moderate flows from driveways, concrete & paver patios, courtyards, walkways, and sports facilities. Kit includes a 5 in. Pro Series Deep Profile channel made of polypropylene (PP), 2 high-density polyethylene (HDPE) channel drain grates, end cap/outlet, and end cap. Channels connect together with interlocking joints, and can be easily cut to 4 in. increments with saw guide. Each channel section provides 8 outlet options. Integrated bottom outlet connects to 3 in. & 4 in. sewer and drain fittings; side knockout outlets connect to 3 in. sewer and drain pipe; end outlet connects to 3 in. sewer and drain pipe, and 4 in. sewer and drain fittings. Hassle-free limited lifetime warranty guarantees the NDS product is free from defects—or we’ll replace it.

Documents

No documents available

Feature Bullets

  • Channel drains and trench drains capture and convey excess water to prevent mildew growth, concrete staining, and costly structural damage
  • 5 in. Pro Series Channel Drain system collects moderate water flows from driveways, concrete & paver patios, courtyards, walkways, and sports facilities, and directs it to drain pipes for proper release downstream
  • The 5 in. Pro Series Channel Deep Profile Drain is 4-3/4 in. deep and features a modular design with interlocking joints for a secure channel-to-channel connection—no couplings required; easy to cut to size in 4 in. increments with saw guide

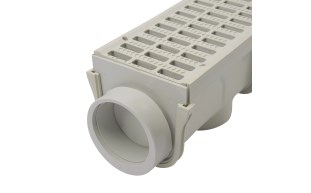

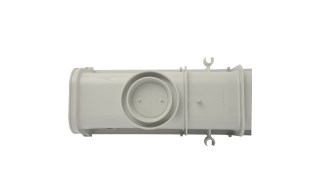

  • Included end cap/outlet combined with integrated bottom outlet and side outlet knockouts provide 8 outlet options per channel section
  • Channel-to-channel clips reduce motion during installation; rebar clips instead of lower mount clips make installation easier

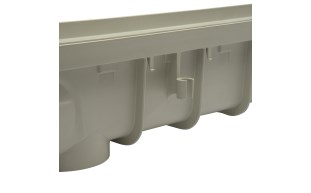

  • Thick channel walls and extended side ribs provide increased strength and durability

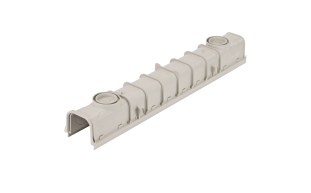

  • Lay-flat design stabilizes channel during installation
  • Branch Availability

    content loaded

    Specifications

    • BrandNational Diversified Sales
    • Each Product Weight5.6 pound
    • Shipping Dimensions40.1 x 8.2 x 9.1 inch
    • Minimum Sell Quantity1
    • ApplicationIrrigation
    • ColorLight Gray
    • Cover Open Area23.5 square inch
    • Flow Rate72 gal/min
    • Grate ColorLight Gray
    • Grate ShapeRectangle

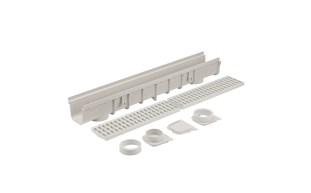

    • Includes5 in. Pro Series Channel Drain kit comes with a Deep Profile channel drain, polyethylene channel grates, end cap/outlet, and end cap
    • Master Carton Quantity9
    • MaterialPolyethylene (plastic), Polypropylene or polypropene
    • Pallet Quantity36
    • Pipe Diameter3 inch
    • Product Depth39.375 inch
    • Product Height5 inch
    • Product Width5.5 inch
    • Standards ApprovalsADA Compliant
    • UPC Code052063018645
