9" Black Square Catch Basin Drain Kit with Green Plastic Grate

Product #:NDS-37-1233

Mfg. Part #:900GRKIT


NDS 900GRKIT 9" Black Square Catch Basin Drain Kit with Green Plastic Grate

National Diversified Sales

9" Black Square Catch Basin Drain Kit with Green Plastic Grate

Product #:NDS-37-1233

Mfg. Part #:900GRKIT

EA

Description

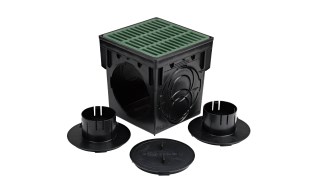

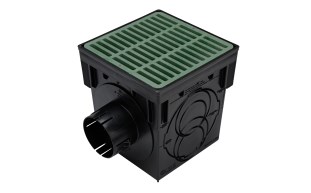

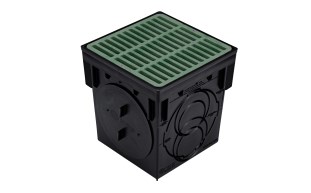

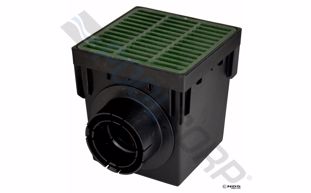

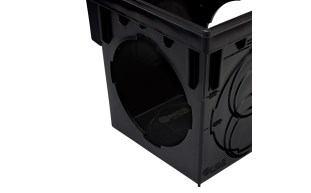

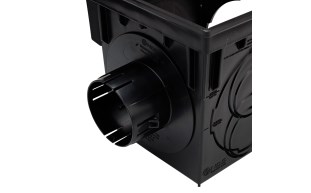

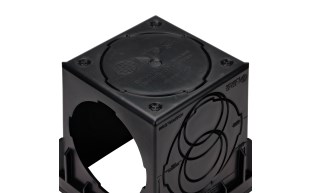

NDS 900GRKIT 9" Black Square Catch Basin Drain Kit with Green Plastic Grate. Kit includes a 2-opening catch basin drain, 1 square drain grate (also known as a drain cover), 2 locking outlet adapters, and 1 outlet plug. Catch basin connects to 3 in. & 4 in. sewer and drain, single-wall corrugated, triple-wall, and DWV/Sch. 40 pipes using the included locking outlet adapters. Polypropylene (PP) basin and high-density polyethylene (HDPE) grate are treated with UV inhibitors. Built-in sump is easy to access and clean. Hassle-free limited lifetime warranty guarantees the NDS product is free from defects—or we’ll replace it.

Documents

No documents available

Branch Availability

content loaded

Specifications

  • BrandNational Diversified Sales
  • Each Product Weight5.3 pound
  • Shipping Dimensions9.38 x 9.38 x 10.13 inch
  • Minimum Sell Quantity1
  • ApplicationIrrigation
  • ChannelConstruction Channel
  • ColorBlack, Green
  • Cover Open Area39.5 square inch
  • Flow Rate121 gal/min
  • Grate ColorBlack, Green
  • Grate ShapeSquare
  • Grate Size9 inch
  • IncludesKit includes 9 in. Catch Basin drain with 2 side openings, 2 Locking Outlet Adapters, 1 Plug, 9 in. Square Plastic Grate
  • Master Carton Quantity4
  • MaterialPolyethylene (plastic), Polypropylene or polypropene
  • Pallet Quantity120
  • Pipe Diameter3 inch
  • Product Height9 inch
  • Product Width9 inch
  • Standards ApprovalsADA Compliant
  • Warranty - AdditionalLimited Lifetime
  • Warranty - General1 years
  • UPC Code052063030982
