94029741 Magnum Force 3 Pool Pump 3HP 208/230-460V
EA
Description
The Magnum Force 3 Pool Pump is for use in in-ground pools. The Magnum Force Series is a self-priming pump that contains an exclusive air-purge system within the strainer that expels air outside of the pump for superior priming capabilities. The one way flap prevents debris from the strainer, skimmer basket, and filter from flowing back into the pool.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandCarvin
- ApplicationInground, Pool
- Horsepower3 horse power
- Voltage208V, 230V
- ChannelNone
- Connection Size 13 inch
- Connection Size 1 FITFNPT
- Each Product Weight51 pound
- Master Carton Quantity1
- Minimum Sell Quantity1
- Motor Speed1-Speed
- Pallet Quantity1
- Service Factor1
- Warranty - General2 years

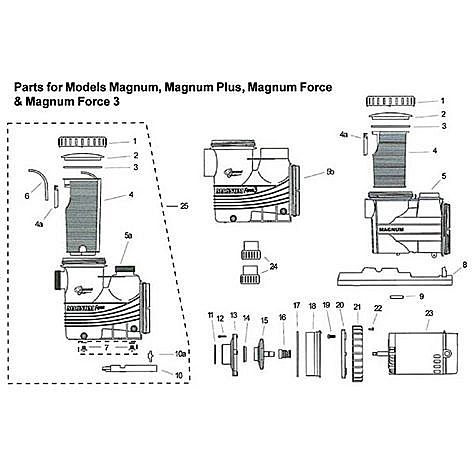

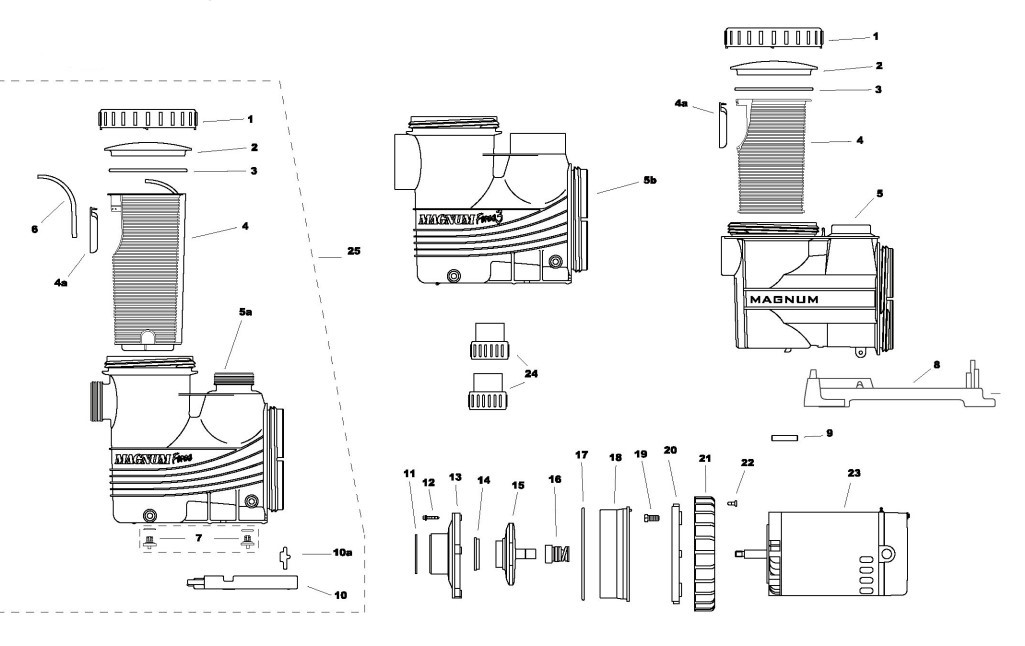

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
42-2828-06-R
Strainer Ring-LokTM
Product #:
Mfg #: 42-2828-06-R
2
2
39-2579-02-R
Strainer Cover
Product #:
Mfg #: 39-2579-02-R
3
3
47-0434-01-R
Strainer O-Ring 5-5/8" x 6-1/8" x 1/4" - Units prior to 7/89
Product #:
Mfg #: 47-0434-01-R
3
3
47-0358-03-R
Strainer O-Ring - Units after 7/89
Product #:
Mfg #: 47-0358-03-R
4
4
16-1097-04-R
Strainer Basket w/Flapper for Magnum Plus
Product #:
Mfg #: 16-1097-04-R
4
4
16-1086-06-R
Strainer Basket (9" tall) w/Flapper for Magnum Force prior to 02/01/03
Product #:
Mfg #: 16-1086-06-R
4
4
16-1134-09-R
Strainer Basket (12" tall) w/Flapper for Magnum Force after 02/01/03
Product #:
Mfg #: 16-1134-09-R
4a
4a
16-1135-10-R
Flapper
Product #:
Mfg #: 16-1135-10-R
5a
5a
03-0906-02-R
JAC-10-9774
Magnum Force Body with Plugs and Basket after 02/01/03
Product #: JAC-10-9774
Mfg #: 03-0906-02-R
5b
5b
03-0907-01-R
Magnum Force 3 Body with Plugs and Basket after 02/01/03
Product #:
Mfg #: 03-0907-01-R
6
6
31-1746-00-R
Strainer Basket Air Bleed Tube
Product #:
Mfg #: 31-1746-00-R
7
7
31-1609-06-R2
Drain Plug w/O-Ring (2 per bag)
Product #:
Mfg #: 31-1609-06-R2
7
7
31-1609-06-R50
Drain Plug w/O-Ring (50 per bag)
Product #:
Mfg #: 31-1609-06-R50
8
8
12-1069-02-R
Base Motor Support Assembly for Magnum Plus
Product #:
Mfg #: 12-1069-02-R
9
9
14-4231-07-R
Dowel Pin 1/4" x 1-1/4" SS for Magnum Plus
Product #:
Mfg #: 14-4231-07-R
Wholegoods
There are no wholegoods available.
