XGT® Brushless 16 Gauge Rebar Tying Tool Kit with Bag 40V Max Li-Ion

Product #:MAK-67-1319

Mfg. Part #:GRT01D


Makita XGT® GRT01D Brushless 16 Gauge Rebar Tying Tool Kit with Bag 40V Max Li-Ion

Makita

XGT® Brushless 16 Gauge Rebar Tying Tool Kit with Bag 40V Max Li-Ion

Product #:MAK-67-1319

Mfg. Part #:GRT01D

EA

Description

The 40V max XGT® 16 Gauge Rebar Tying Tool Kit (2.5 Ah) (GRT01D) is the world’s first 40V max 16 Gauge Rebar Tying tool. It’s engineered for stronger ties, deep tying capacity, and greater efficiency as it dispenses the exact amount of wire each tie needed to cut production costs and get more savings per tie. It is ideal for a range of trades and applications, from commercial buildings, road and bridge, and tilt-up construction to pool and residential building, electrical conduit installation, pre-cast, and more.

Documents

Feature Bullets

  • Outpower: World's first 40V max 16-gauge rebar tying tool
  • Outsmart: Up to 65% stronger ties with 16-gauge wire
  • Outlast: Up to 3,600 ties of #3 x #3 diameter rebar using a 40V max XGT® 2.5Ah Battery
  • Delivers up to 245 ties per reel of #3 x #3 rebar
  • Engineered to dispense the exact amount of wire each tie needs to cut production costs with more cost savings per tie
  • Maximum tying capacity of #9 x #8 rebar; minimum tying capacity of #3 x #3 rebar or wire mesh x wire mesh
  • Easy-load wire reel design with automatic locking protective cover
  • 6 tie strength settings to match various tension strength requirements
  • Lock-off button prevents accidental start-up
  • Hook fits up to #6 rebar for ease of storage on a jobsite

    • Branch Availability

    content loaded

    Specifications

    • BrandMakita
    • ApplicationOutdoor
    • Shipping Dimensions18.6 x 22.3 x 6.8 inch
    • ColorBlack, Green
    • Battery Amp Hours2.5
    • Battery TypeLithium Ion
    • Battery Voltage40V
    • ChannelMaintenance Channel
    • Commercial, Residential, or ProfessionalResidential
    • Cordless or CordedBattery
    • Each Product Weight22.15 pound

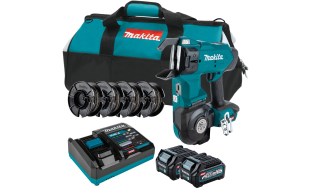

    • Includes1 40V max XGT® Brushless 16 Gauge Rebar Tying Tool (GRT01Z), 2 40V mx XGT® 2.5Ah Batteries (BL4025), 1 40V max XGT® Rapid Optimum Charger (DC40RA), 1 Tool Bag (831271-6), 4 Steel Tie Wire Reel 16 Gauge
    • Individual or Tool SetSet
    • Minimum Sell Quantity1
    • Motor Brush TypeBrushless
    • Number of Pieces Included9
    • Power Tool TypeCutoff Machine
    • Warranty - General3 years
    • UPC Code197050018311

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

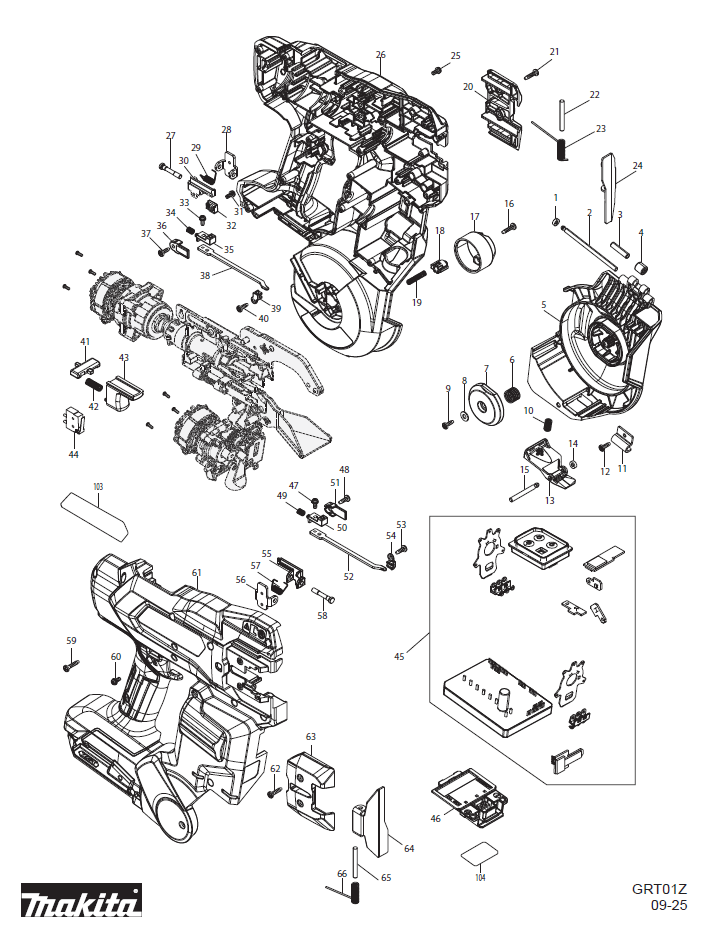

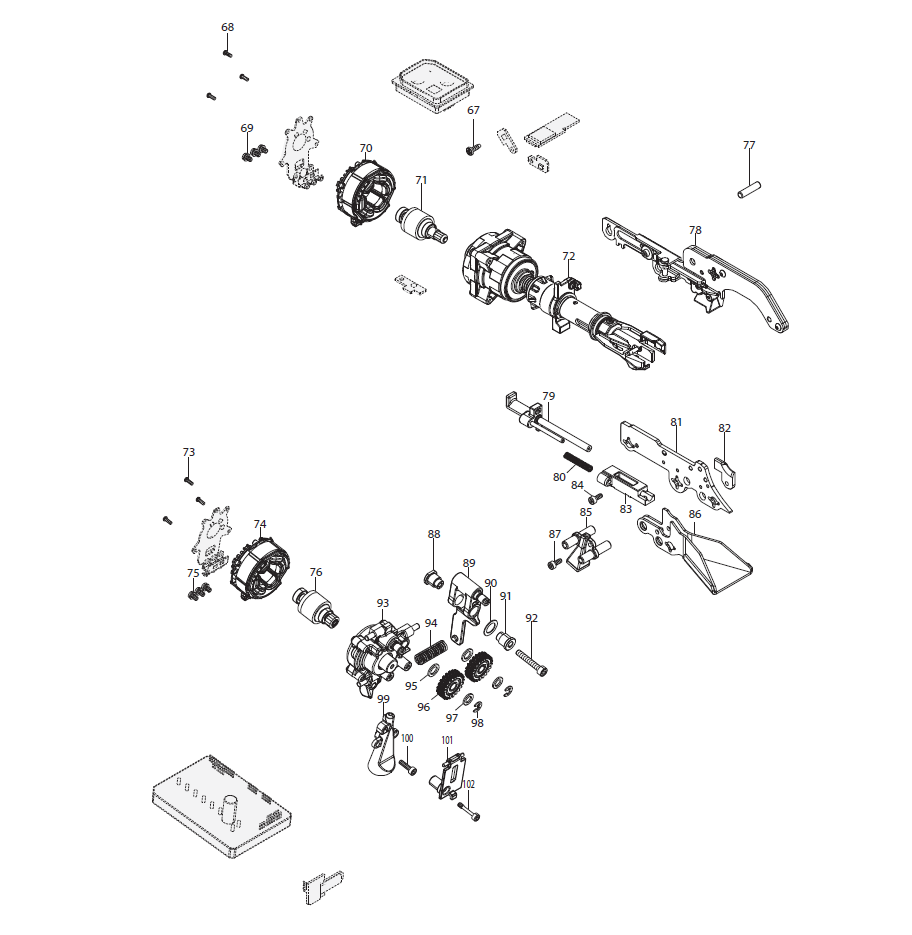

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    014
    014
    262054-7
    Urethane Ring 3
    Product #:
    Mfg #: 262054-7
    002
    002
    256A96-7
    Grooved Pin 4B
    Product #:
    Mfg #: 256A96-7
    003
    003
    268238-5
    Pin 5
    Product #:
    Mfg #: 268238-5
    004
    004
    212009-2
    Needle Bearing 509
    Product #:
    Mfg #: 212009-2
    005
    005
    1412D1-0
    Magagine Cover Complete
    Product #:
    Mfg #: 1412D1-0
    006
    006
    232924-4
    Compression Spring 11
    Product #:
    Mfg #: 232924-4
    007
    007
    312H72-4
    Reel Bearing
    Product #:
    Mfg #: 312H72-4
    008
    008
    941051-3
    Flat Washer 4
    Product #:
    Mfg #: 941051-3
    067
    067
    266007-8
    Tapping Screw Bind Pt 3 x 10
    Product #:
    Mfg #: 266007-8
    Notes:
    Qty 2
    010
    010
    233388-5
    Compression Spring 5
    Product #:
    Mfg #: 233388-5
    011
    011
    347D47-0
    Guide Plate
    Product #:
    Mfg #: 347D47-0
    013
    013
    4131T9-3
    Magazine Cover Lock
    Product #:
    Mfg #: 4131T9-3
    015
    015
    256A93-3
    Grooved Pin 4A
    Product #:
    Mfg #: 256A93-3
    062
    062
    266404-8
    Tapping Screw Bind 3 x 14
    Product #:
    Mfg #: 266404-8
    Notes:
    Qty 2
    017
    017
    312H73-2
    Reel Base
    Product #:
    Mfg #: 312H73-2

    Wholegoods

    There are no wholegoods available.
