White LR1 Return Assembly

Product #:PUL-25-1003

Mfg. Part #:RLR-BO-01-W


PUL Products RLR-BO-01-W White LR1 Return Assembly

PUL Products

White LR1 Return Assembly

Product #:PUL-25-1003

Mfg. Part #:RLR-BO-01-W

EA

Description

The Pul Return LR1 is designed to provide a high capacity return to the pool. When installed, the LR1 is flush with the pool finish and has no visible trim. This is a one-piece assembly with no visible trim installation required.

Documents

Feature Bullets

  • Unequalled design aesthetic

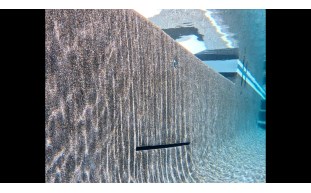

  • The linear return blends discreetly into the pool sidewall or floor
  • 34” x 1” linear slot
  • Integrated finish surface adjustment up to 2”
  • 200 GPM recommended maximum flow rate
  • Reversible cap with pool finish or logo options
  • Safe extra-deep slot depth to prevent entrapment
  • 3” rear pipe connection
  • Integrated pressure test cap
  • Patents pending

    • Branch Availability

    content loaded

    Specifications

    • BrandPUL Products
    • ApplicationPool
    • Shipping Dimensions37 x 9 x 14 inch
    • ChannelNone
    • ColorWhite
    • Commercial, Residential, or ProfessionalResidential
    • Each Product Weight20 pound
    • Minimum Sell Quantity1

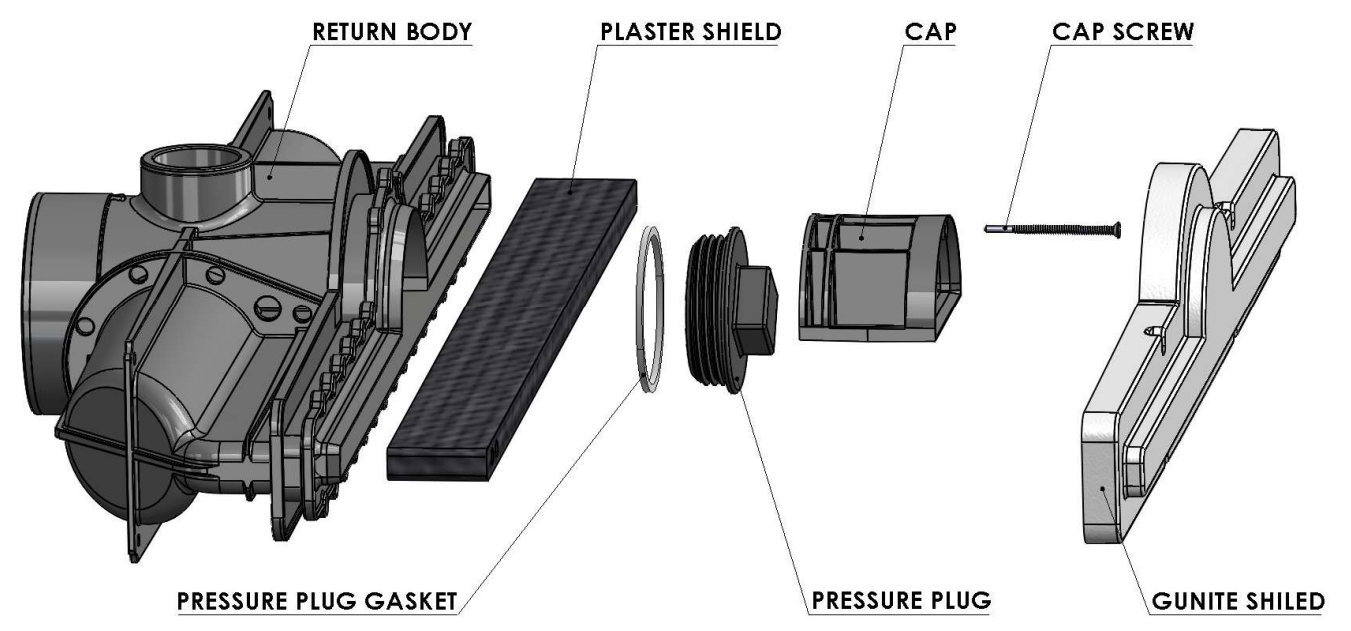

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    2305-20002A-01
    COMPLETE RETURN ASSEMBLY
    Product #:
    Mfg #: 2305-20002A-01
    2
    2
    2205-20013A-01
    GUNITE SHIELD
    Product #:
    Mfg #: 2205-20013A-01
    3
    3
    2205-80002A-01
    CAP SCREW
    Product #:
    Mfg #: 2205-80002A-01
    4
    4
    2205-20007A-01
    FLIP CAP
    Product #:
    Mfg #: 2205-20007A-01
    5
    5
    2205-20009A-01
    PRESSURE PLUG
    Product #:
    Mfg #: 2205-20009A-01
    6
    6
    2205-40018A-01
    PRESSURE PLUG GASKET
    Product #:
    Mfg #: 2205-40018A-01
    7
    7
    2205-20017A-01
    PLASTER SHIELD
    Product #:
    Mfg #: 2205-20017A-01
