Jandy
400 SqFt Cartridge Filter Designed As A Drop-In for Pentair Clean & Clear Plus
Product #:TLD-05-1004
Mfg. Part #:CC400

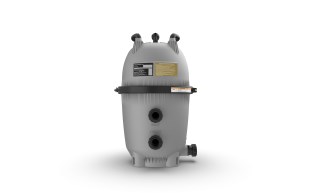

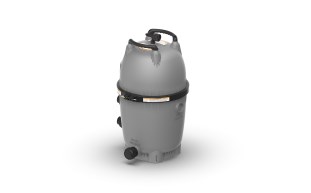

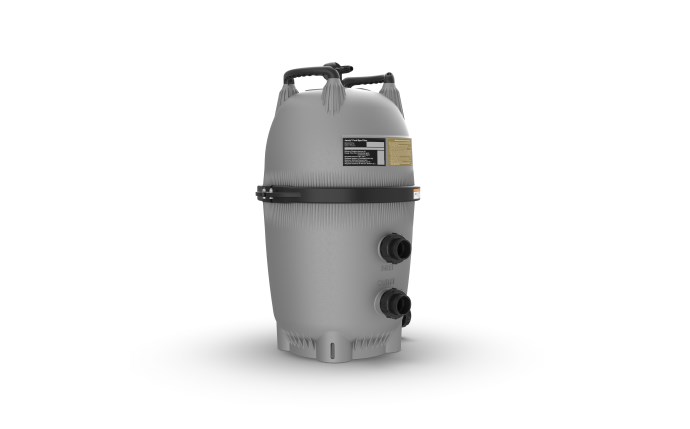

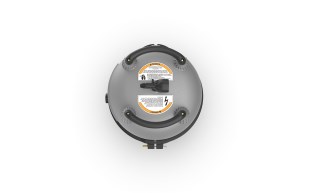

Jandy CC400 400 SqFt Cartridge Filter Designed As A Drop-In for Pentair Clean & Clear Plus
Jandy
400 SqFt Cartridge Filter Designed As A Drop-In for Pentair Clean & Clear Plus
Product #:TLD-05-1004
Mfg. Part #:CC400
EA
Description

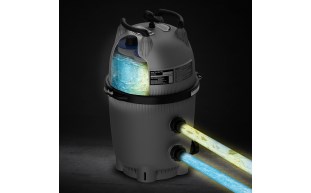

The Jandy® CC Series 400 Sq. Ft. Cartridge Filter keeps your pool clean and clear with less upkeep. As a less costly drop-in replacement for Pentair® Clean & Clear® Plus, it delivers high residential flow rates with up to 50% lower head loss, based on Fluidra internal testing, while fitting existing plumbing with no modifications required.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandJandy
- ApplicationPool, Spa
- Shipping Dimensions39.8 x 23.6 x 23.6 inch
- Cartridges Required4
- ChannelNone
- ColorGray
- Commercial, Residential, or ProfessionalResidential
- Distance Between Inlet/Outlet7.5 inch
- Each Product Weight95 pound
- Filtration Area400 square feet
- Filtration Rate0.375 GPM/ft2
- Maximum Flow Rate150 gal/min
- Maximum Working Pressure50 pounds per square inch
- Minimum Sell Quantity1
- Tank ColorGray
- Turnover 10hrs90000 gallon
- Turnover 6hrs54000 gallon
- Turnover 8hrs72000 gallon
- Footprint25" Diameter
- For Use WithPentair Clean & Clear Plus
- UPC Code052337331029

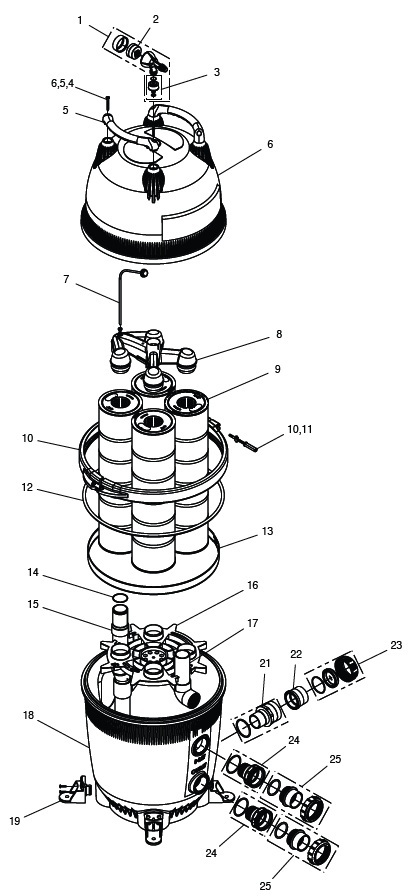

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
2
3
4
5
5
R0357100
TLD-051-3571
Handle, Top, Large Filter Replacement Kit
Product #: TLD-051-3571
Mfg #: R0357100
6
6
R0554701
Body, Upper, Filter Tank Body, R-Kit
Product #:
Mfg #: R0554701
6
6
R0357301
Tank Body, Upper Half, Large Filter, R-Kit
Product #:
Mfg #: R0357301
7
8
9
9
R0554500
TLD-06-5019
Product #: TLD-06-5019
Mfg #: R0554500
9
9
R0554600
TLD-06-5018
Product #: TLD-06-5018
Mfg #: R0554600
9
9
R0357900
TLD-06-122
Product #: TLD-06-122
Mfg #: R0357900
10
11
11
R0357500
TLD-101-6002
Product #: TLD-101-6002
Mfg #: R0357500
12
Wholegoods
There are no wholegoods available.
