FXLuminaire

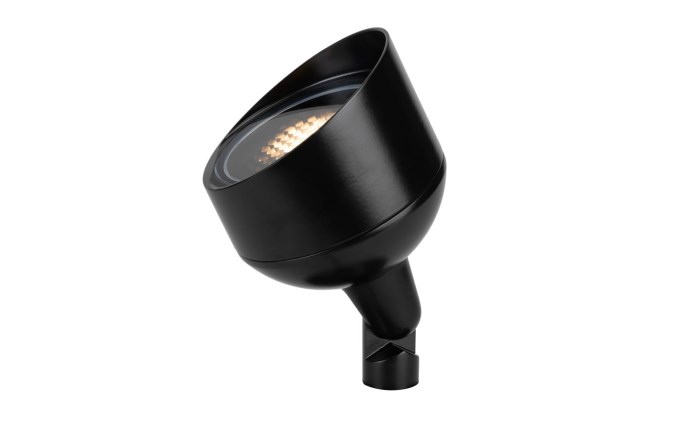

Cora CA-73 Flat Black Accent Light 27K 11.3V

Product #:FXL-96-3413

Mfg. Part #:CA73E12WFLFB


FXLuminaire CA73E12WFLFB Cora CA-73 Flat Black Accent Light 27K 11.3V

FXLuminaire

Cora CA-73 Flat Black Accent Light 27K 11.3V

Product #:FXL-96-3413

Mfg. Part #:CA73E12WFLFB

EA

Description

The CA-73 Accent Light delivers high-output performance for demanding accent applications. Powered by a PAR-36 Lamp, it allows contractors to highlight large landscape features with fewer fixtures.

Documents

Feature Bullets

  • Designed to illuminate large trees, architectural elements, and focal points
  • Provides more coverage with fewer fixtures
  • Outperforms MR-16 fixtures with higher-output PAR-36 Lamp
  • Constructed from select brass for long-term durability
  • Includes glare-reducing Hex Baffle
  • Maintains a cohesive look with other Cora Collection fixtures for design consistency

    • Branch Availability

    content loaded

    Specifications

    • BrandFXLuminaire
    • ApplicationOutdoor
    • Shipping Dimensions9 x 9 x 9 inch
    • ChannelConstruction Channel
    • ColorBlack
    • Color Temperature2700
    • Commercial, Residential, or ProfessionalResidential
    • Each Product Weight5.8 pound
    • FinishFlat
    • Fixture TypeArea Light
    • Lead Wire Length26 foot
    • Light Bulb TypeLED
    • Lighting Product TypeOutdoor Lighting
    • Lumens800
    • MaterialBrass
    • Minimum Sell Quantity1
    • Pallet Quantity112
    • Warranty - General10 years
    • Beam AngleFlood
    • Beam Spread (deg)35
    • Includes11.3 VA, PAR-36 Eco LED Lamp, LSS Ground Stake, Lock Ring and Hex Baffle
    • Light Bulb ShapePAR
    • Light Bulb Shape CodePAR36
    • MountingBottom
    • UPC Code196055086295

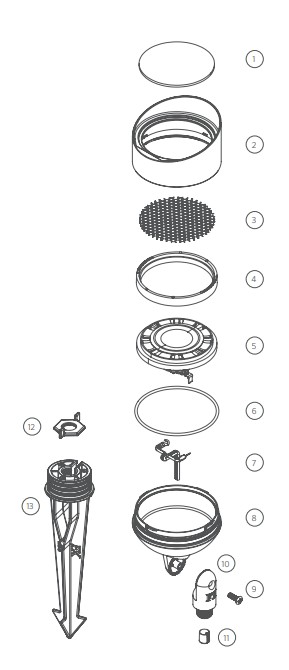

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    3-4
    3-4
    CA73HEXGASKET
    Gasket and Hex Assembly
    Product #:
    Mfg #: CA73HEXGASKET
    6
    6
    250010280061SP
    O-Ring for AB Finish
    Product #:
    Mfg #: 250010280061SP
    6
    6
    250010280065SP
    O-Ring for FB Finish
    Product #:
    Mfg #: 250010280065SP
    7
    7
    CA73WIRELEAD
    Cable Assembly, 18 AWG SPT
    Product #:
    Mfg #: CA73WIRELEAD
    11
    11
    250031010000SP
    Critter Plug
    Product #:
    Mfg #: 250031010000SP
    9-11
    9-11
    KFM-050-C-XX
    Knuckle Subassembly
    Product #:
    Mfg #: KFM-050-C-XX
    12
    12
    250030410000SP
    Lock Ring
    Product #:
    Mfg #: 250030410000SP
    13
    13
    250015840000
    FXL-301-7002
    LONG SLOT SPIKE
    Product #: FXL-301-7002
    Mfg #: 250015840000

    Wholegoods

    There are no wholegoods available.
