SPECK PUMPS

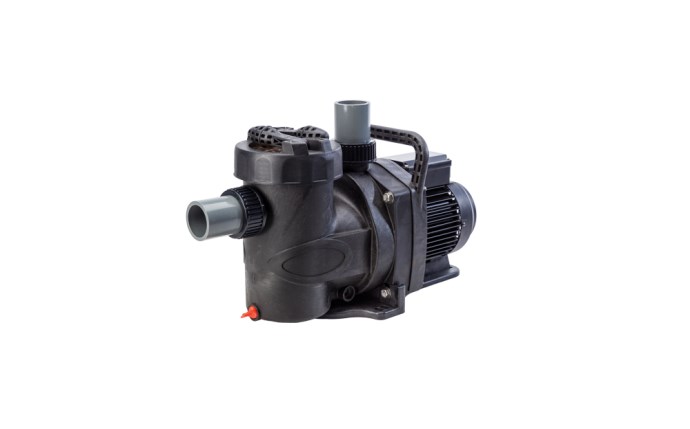

BADU Pro-II E Pool Pump Royal 1THP 115/230V

Product #:SPK-10-1017

Mfg. Part #:IG371-1100T-0RC


SPECK PUMPS IG371-1100T-0RC BADU Pro-II E Pool Pump Royal 1THP 115/230V

SPECK PUMPS

BADU Pro-II E Pool Pump Royal 1THP 115/230V

Product #:SPK-10-1017

Mfg. Part #:IG371-1100T-0RC

EA

Description

The BADU® Pro E Series saves you time and money while making your life simpler. This all-plastic, self-priming, energy efficient swimming pool pump is designed for small to medium size in-ground residential pools and spas. This pump design has been engineered for incredible durability, superior performance, and quiet operation.

Documents

Feature Bullets

  • The BADU® Pro is a drop in replacement design for Hayward® Super Pump® and Pentair® SuperFlo® pumps
  • This BADU Pro E Series has a 4-bolt casing design with handle making this pump easy to service
  • This BADU Pro E Series comes with an industry standard Carbon/Ceramic 5/8" mechanical seal
  • Suction and discharge are equipped with quick disconnect unions for easy installation and maintenance (Models are available in 1.5" or 2" casings)
  • Lock ring that incorporates handles. These handles provide the user with a convenient way to easily remove the lid
  • Motor is easy to remove without disturbing the plumbing. Reusable o-rings throughout

    • Branch Availability

    content loaded

    Specifications

    • BrandSPECK PUMPS
    • Amperage10.7 amperage
    • Shipping Dimensions26 x 11 x 15 inch
    • Amps High Speed10.7
    • Amps Low Speed4.8
    • ApplicationInground, Pool
    • ChannelNone
    • ColorBlack
    • Commercial, Residential, or ProfessionalResidential
    • Each Product Weight35 pound
    • Horsepower1 horse power
    • MaterialPlastic
    • Minimum Sell Quantity1
    • Motor Enclosure TypeTotally Enclosed Fan Cooled
    • Motor Frame Size48
    • Motor Speed1-Speed
    • Port Size 11.5 inch
    • Thrust HP1
    • Voltage115V, 230V
    • Warranty - General90 days
    • Weighted Energy Factor (WEF)3.74
    • UPC Code840182108961

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

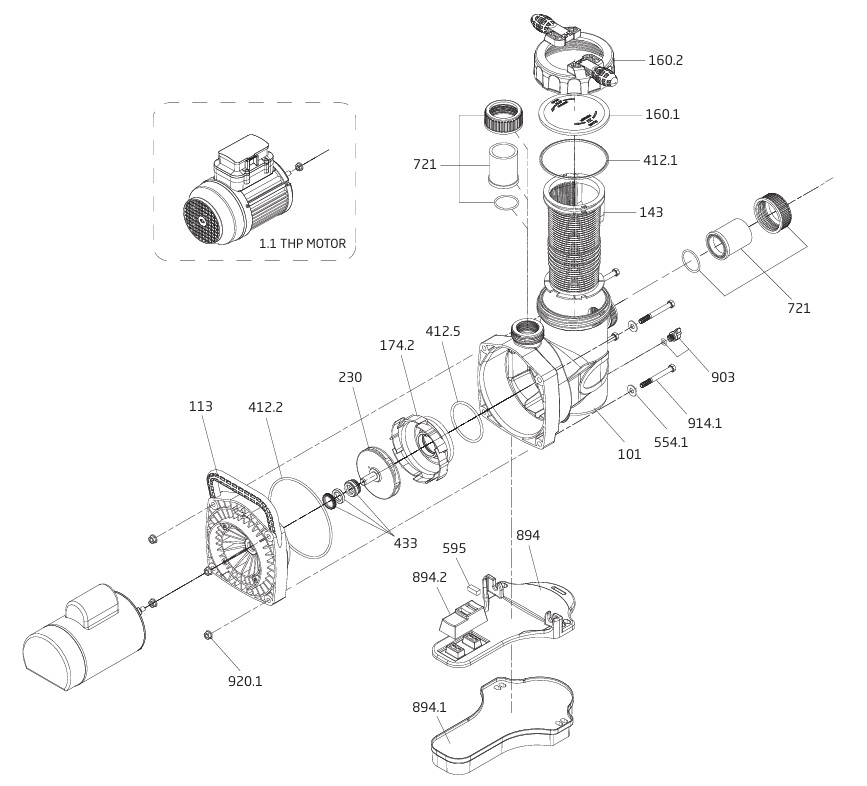

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    160.1
    160.1
    2901116010
    SPK-101-2749
    BADU 72/ S90/ E71 CLEAR LID
    Product #: SPK-101-2749
    Mfg #: 2901116010
    Not Shown
    Not Shown
    2921116012
    Lid - Clear w/ LED Light
    Product #:
    Mfg #: 2921116012
    160.2
    160.2
    2921116022
    SPK-101-3154
    STRAINER COVER LOCK RING W/ HANDLES (2015+)
    Product #: SPK-101-3154
    Mfg #: 2921116022
    412.1
    412.1
    2921141210
    SPK-101-2679
    137mm x 5mm O-Ring for 433 Pool Pump Lid
    Product #: SPK-101-2679
    Mfg #: 2921141210
    143
    143
    2901114300
    SPK-101-2610
    5-1/8"x7-3/8" STRAINER BASKET
    Product #: SPK-101-2610
    Mfg #: 2901114300
    101
    101
    2901510102
    SPK-101-1007
    1.5" Port Casing for Badu® Pro Series Pumps
    Product #: SPK-101-1007
    Mfg #: 2901510102
    101
    101
    2901510103
    SPK-101-1008
    2" Port Casing for Badu® Pro Series Pumps
    Product #: SPK-101-1008
    Mfg #: 2901510103
    903
    903
    2901490300A
    SPK-101-1009
    Drain Plug with O-ring for Pool Pumps
    Product #: SPK-101-1009
    Mfg #: 2901490300A
    914.1
    914.1
    2991000154
    Screw - 3/8-16 x 3-1/2" Hex Cap SS
    Product #:
    Mfg #: 2991000154
    Notes:
    Qty 4
    554.1
    554.1
    2991400035
    Washer - Flat 3/8" SS
    Product #:
    Mfg #: 2991400035
    Notes:
    Qty 4
    920.1
    920.1
    2991000155
    Nut - 3/8-16 Brass
    Product #:
    Mfg #: 2991000155
    Notes:
    Qty 4
    595
    595
    2920359501
    Rubber Buffer - 10 x 10 x 27mm
    Product #:
    Mfg #: 2920359501
    894.1
    894.1
    2901589300
    SPK-101-1027
    WF Riser for Badu® Pro Series Pumps
    Product #: SPK-101-1027
    Mfg #: 2901589300
    894.2
    894.2
    2901591701
    Motor Support
    Product #:
    Mfg #: 2901591701
    894
    894
    2901589400
    Base Plate
    Product #:
    Mfg #: 2901589400
