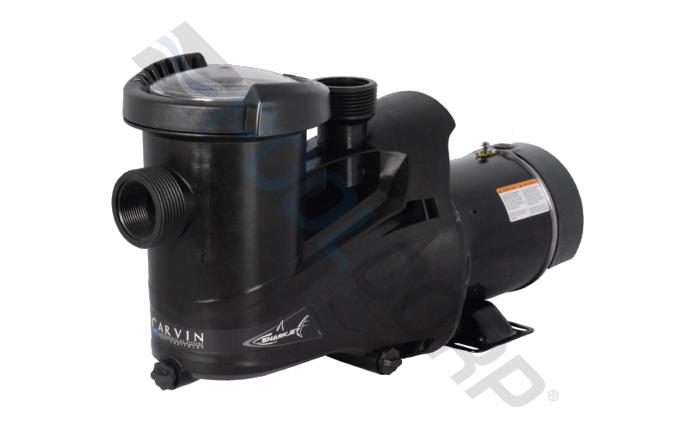

SHARKJETAbove Ground 1 Speed Pump 1.5HP 115V 60Hz

Product #:JAC-10-9885

Mfg. Part #:94027625


94027625 SHARKJETAbove Ground 1 Speed Pump 1.5HP 115V 60Hz

Carvin

SHARKJETAbove Ground 1 Speed Pump 1.5HP 115V 60Hz

Product #:JAC-10-9885

Mfg. Part #:94027625

EA

Description

The Sharkjet Above Ground Pump assures flow even when filled with leaves and debris. The pump's once-piece case eliminates leaks and ensures quiet operation. The integrated handle makes it easy to transport and access the strainer basket without tools. This pump is a breeze to operate, transport, and maintain making it a great choice for cleaning your pool.

Documents

Feature Bullets

  • EASY QUARTER TURN OPENING SYSTEM: The integrated handles allow a tool-free access to strainer basket
  • HEAVY-DUTY LARGE CAPACITY STRAINER BASKET: The internal ribs in the large strainer basket assure flow, even when filled with leaves and debris. INTEGRATED HANDLE: Pump’s body is equipped with an integrated handle for easy transport
  • 9 OR 12 O’CLOCK POSITION DISCHARGE
  • TWO TYPE CONNECTION: 1 ½ in (38 mm) FNPT connection or external threads for unions
  • ONE-PIECE CASE: Eliminates leaks and ensures quiet operation.

    • Branch Availability

    content loaded

    Specifications

    • BrandCarvin
    • Amps High Speed12.4
    • Shipping Dimensions0 x 0 x 0 inch
    • ApplicationAbove Ground, Pool
    • ChannelNone
    • Connection Size 11.5 inch
    • Connection Size 1 FITFNPT
    • Cord Length6 foot
    • Each Product Weight0 pound
    • Frequency Rating (Hz)60
    • Horsepower1.5 horse power
    • IncludesRemote Control
    • Master Carton Quantity1
    • Minimum Sell Quantity1
    • Motor Speed1-Speed
    • Product Depth8.5 inch
    • Product Height11.375 inch
    • Product Weight29 pound
    • Product Width21.75 inch
    • Voltage115V
    • Warranty - General2 years
    • Max Liquid Temperature104 degrees Fahrenheit

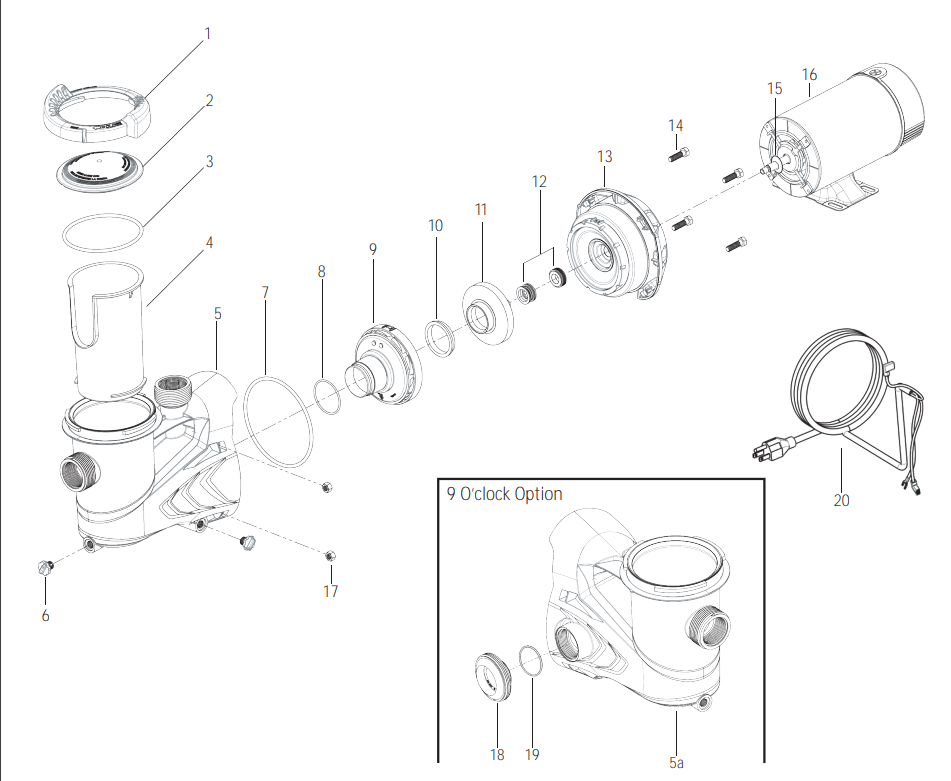

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    42-1679-70-R
    Strainer nut (1/4 turn)
    Product #:
    Mfg #: 42-1679-70-R
    2
    2
    39-0789-03-R
    Strainer cover
    Product #:
    Mfg #: 39-0789-03-R
    3
    3
    47-0352-41-R
    Strainer cover O-ring
    Product #:
    Mfg #: 47-0352-41-R
    4
    4
    16-1052-15-R
    Strainer basket
    Product #:
    Mfg #: 16-1052-15-R
    5
    5
    16-1102-12-R
    JAC-101-9596
    1.5" Strainer Pump Body
    Product #: JAC-101-9596
    Mfg #: 16-1102-12-R
    5a
    5a
    16-1102-90-R
    Strainer body 9 O’ clock discharge 1-1/2”
    Product #:
    Mfg #: 16-1102-90-R
    6
    6
    31-1609-06-R2
    Drain Plug with O-ring ( 2 Per Bag)
    Product #:
    Mfg #: 31-1609-06-R2
    7
    7
    47-0361-08-R
    SharkJet Strainer Body Main O-ring
    Product #:
    Mfg #: 47-0361-08-R
    8
    8
    47-0214-06-R
    Diffuser O-ring
    Product #:
    Mfg #: 47-0214-06-R
    9
    9
    06-0517-39-R
    Sharkjet Diffuseur
    Product #:
    Mfg #: 06-0517-39-R
    10
    10
    10-1462-07-R
    Floating eye seal
    Product #:
    Mfg #: 10-1462-07-R
    11
    11
    05-3760-09-R
    Impeller for 3/4 hp motors
    Product #:
    Mfg #: 05-3760-09-R
    11
    11
    05-3759-02-R
    Impeller for 1 hp motors
    Product #:
    Mfg #: 05-3759-02-R
    11
    11
    05-1234-05-R
    Impeller for 1.5 hp motors
    Product #:
    Mfg #: 05-1234-05-R
    11
    11
    05-3853-07-R
    Impeller for 2 hp motors
    Product #:
    Mfg #: 05-3853-07-R
