WhisperFlo® 1-Speed High-Performance Pump with TEFC Motor 1 HP 115/208-230V

Product #:PUR-10-1527

Mfg. Part #:011527

  • This product is obsolete.
  • The superceded product was not found.

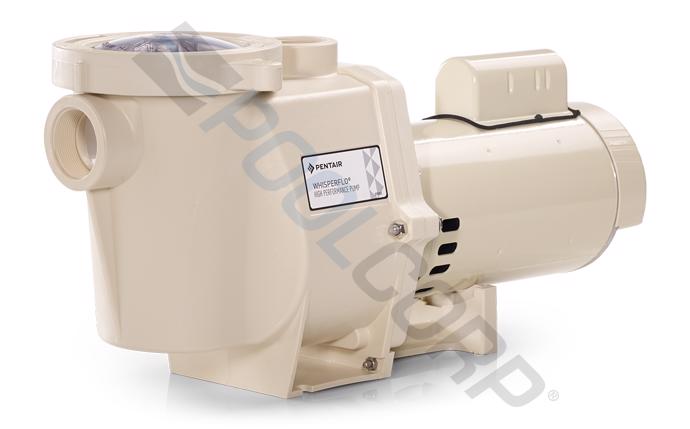

Pentair WhisperFlo® 011527 1-Speed High-Performance Pump with TEFC Motor 1HP 115/208-230V

Pentair

WhisperFlo® 1-Speed High-Performance Pump with TEFC Motor 1 HP 115/208-230V

Product #:PUR-10-1527

Mfg. Part #:011527

Description

Pentair 011527 WhisperFlo® 1 Speed TEFC Pump 1HP 115/208-230V is made with robust thermoplastic with the Cam & Ramp™ See-Through Lid design. Self-priming, high flow with Funnel-Flo™ Diffusers. 2" suction and discharge ports. Motor features threaded shaft and durable commercial duty 56 frame motor.

Documents

Feature Bullets

  • Oversized strainer basket and volute —industry standard in pool pumps
  • TEFC Motors available
  • Lower HP’s deliver higher performance than industry standard
  • Compatible with all cleaning systems, various filters and jet action spas
  • Heavy-duty per durable construction is designed for long life
  • Designed for residential and commercial applications

    • Branch Availability

    content loaded

    Specifications

    • BrandPentair
    • Amperage15.1 amperage
    • Shipping Dimensions15 x 12.62 x 28.35 inch
    • Amps High Speed15.1
    • ApplicationInground, Pool
    • Each Product Weight50 pound
    • Horsepower1 horse power
    • Master Carton Quantity1
    • MaterialThermoplastic
    • Minimum Sell Quantity1
    • Motor Enclosure TypeTotally Enclosed Fan Cooled
    • Pallet Quantity18
    • Port Size 12 inch
    • Port Size 1 FITNPT
    • Port Size 22 inch
    • Port Size 2 FITNPT
    • Standards ApprovalsNSF Certified, UL Certified
    • Voltage208V, 230V
    • UPC Code788379507626

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

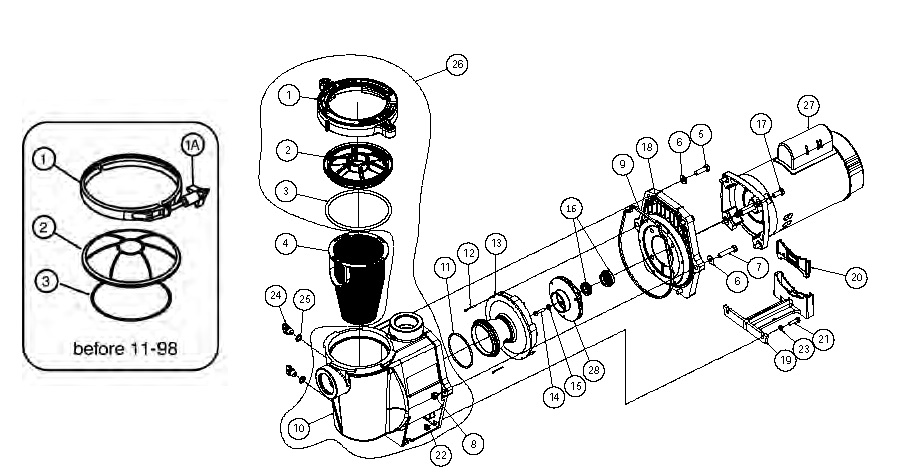

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    070711
    PUR-101-3344
    Stainless Steel Clamp Band Assembly 11" x 8" x 2"
    Product #: PUR-101-3344
    Mfg #: 070711
    Notes:
    Used on pumps manufactured before 11-98
    1
    1
    357150Z
    PAC-101-4959
    Black WhisperFlo® Plastic Cam and Ramp Strainer Cover Clamp
    Product #: PAC-101-4959
    Mfg #: 357150Z
    Notes:
    Used on pumps manufactured between 11-98 thru 12-17-99
    1
    1
    357199Z
    PUR-101-3370
    Cam & Ramp® Plastic Clamp
    Product #: PUR-101-3370
    Mfg #: 357199Z
    Notes:
    Used on pumps manufactured after 12-17-99
    1A
    1A
    071136Z
    PUR-051-1136
    4000 Series Plastic Knob Loop Assembly
    Product #: PUR-051-1136
    Mfg #: 071136Z
    Notes:
    Used on pumps manufactured before 11-98
    2
    2
    070795
    PUR-101-3351
    Clear Lexan Cover 2.75" x 6.25" x 7.25"
    Product #: PUR-101-3351
    Mfg #: 070795
    Notes:
    Used on pumps manufactured before 11-98
    2
    2
    357151Z
    PAC-101-4960
    WhisperFlo® Clear Strainer Cover After 11/1998
    Product #: PAC-101-4960
    Mfg #: 357151Z
    Notes:
    Used on pumps manufactured after 11-98
    2
    2
    357156
    PAC-101-0108
    Chemical Resistant Blue Tint Lid
    Product #: PAC-101-0108
    Mfg #: 357156
    3
    3
    071422Z
    PUR-101-3400
    Strainer Cover O-Ring 6" x .2"
    Product #: PUR-101-3400
    Mfg #: 071422Z
    Notes:
    Used on pumps manufactured before 11-98
    3
    3
    350013Z
    PUR-101-1061
    Cover O-Ring #436 5.85" x .275"
    Product #: PUR-101-1061
    Mfg #: 350013Z
    Notes:
    Used on pumps manufactured after 11-98
    3
    3
    O-218-9
    ALA-601-5489
    O-218-9 ORING AMP/PRE/STA
    Product #: ALA-601-5489
    Mfg #: O-218-9
    Notes:
    Used on pumps manufactured after 11-98
    3
    3
    O-218-9
    SPG-601-1122
    Sta-Rite Max-E-Glas Strainer Cover O-Ring
    Product #: SPG-601-1122
    Mfg #: O-218-9
    Notes:
    Used on pumps manufactured after 11-98
    3
    3
    O-318-9
    SPG-601-5516
    WFE/ 700/ Challenger/ Lid O-Ring (After 11/1998)
    Product #: SPG-601-5516
    Mfg #: O-318-9
    Notes:
    Used on pumps manufactured after 11-98
    3
    3
    O-318-9
    ALA-601-5516
    Pac-Fab O-Ring
    Product #: ALA-601-5516
    Mfg #: O-318-9
    Notes:
    Used on pumps manufactured after 11-98
    3
    3
    352600
    PAC-101-3059
    Model 700 Lid O-Ring 6.25" x .25"
    Product #: PAC-101-3059
    Mfg #: 352600
    Notes:
    Used on pumps manufactured after 11-98
    3
    3
    O-218-9
    SPG-601-1122
    Sta-Rite Max-E-Glas Strainer Cover O-Ring
    Product #: SPG-601-1122
    Mfg #: O-218-9
    Notes:
    Used on pumps manufactured after 11-98

    Wholegoods

    There are no wholegoods available.
